TVS

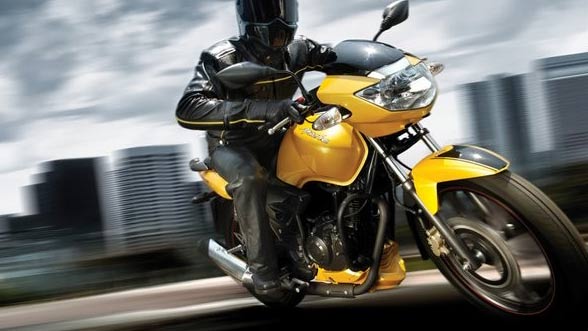

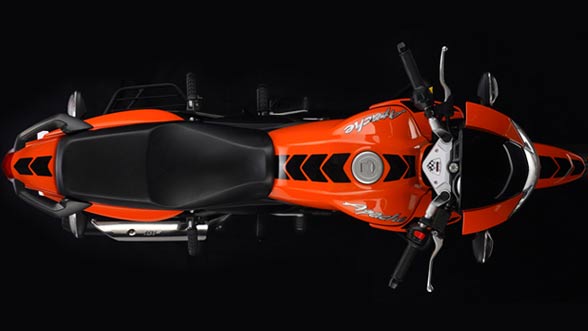

Apache is a 150 cc byke from
TVS Motors.
According to the findings of the 2006 Motorcycle Total Customer
Satisfaction study, it has been ranked highest in the premium segment.
The design highlights of the bike offer a more aerodynamic look with
pointing down, arrow shaped headlamp and triangular front mudguard.
The 16-litre fuel tank gives Apache a heavy front look, much like
Pulsar and Unicorn. The other build features of the bike include a dual
cradle chassis, six-spoke, matt-black finished alloy wheels, aluminium
die-cast sub-frames, rectangular-section swing arm for the rear wheel
and a straight, low-set handle bar that offers the rider a lean-forward
position while astride the bike.
| Dimension &
Weight |
| Wheelbase (mm) |
1260 |
| Kerb weight (kgs) |
136 |
| Fuel Tank Capacity (Lt) |
16 |
| Engine |
| Type |
Air-Cooled OHC |
| Stroke (2/4) |
4 - Stroke |
| No. of cylinders |
Single Cylinder |
| Bore x stroke |
57 mm x 57.8 mm |
| Displacement |
147.5 CC |
| Electrical |
5.0 Ah (Kick-Start) / 12 Volts, 9.0 Ah
(Self-Start) |
| Transmission |
| No. of Gears |
5 Speed Constant mesh |
| Clutch |
Double Cradle |
| Performance |
| Maximum Power |
9.95 kw / (13.5 bhp) @ 8500 rpm |
| Max. Torque |
12.3 Nm @ 6000 rpm |
| Start |
Kick Start / Electric Start |
| Suspensions |
| Front |
Telescopic Fork, 105 mm Front Suspensions |
| Rear |
Monotube inverted Gas filled shox (MIG) |
| Brakes |
| Front |
Disc Brakes, 240 mm at Front |
| Rear |
Drum Brakes, 130 mm at Rear |
| Tyres |
| Front |
90 x 90 x 17 (Kick-Start) / 90 x 90 x 17",
Spoked Wheel (Self-Start) |
| Rear |
100/80 X 18” – 90/90 X 18”(optional) |
